AMR-K08081424-32-62 Cross Column Tombstones

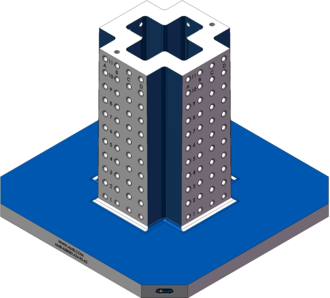

Cross Column Tombstone

Model: AMR-K08081424-32-62

Request Quote
List Price: $7500
Quantity

Adobe 3D PDF help

Line Drawing - Click to Enlarge

Product Details

B (in) 14.00
C (in) 24.00
D (in) 31.50 (800mm)
A1 (in) 8.00
A2 (in) 8.00
E (in) 2.00
F (in) 2
G (in) 1
Material Cast Iron
Shape Cross Column
Grid Style* 5/8"
