AMF-P1818-01-50 Fixture Plate

Fixture Plate

Model: AMF-P1818-01-50

Request Quote Quantity

Adobe 3D PDF help

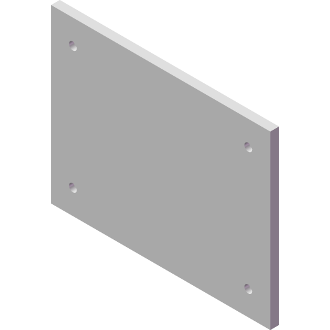

Line Drawing - Click to Enlarge

Product Details

Nom. Size (in) 20 x 25
A (in) 19.60
A1 (in) 2.80
B (in) 25.00
C (in) 1.00
L (in) 0.38
M (in) 14
B1 (in) 2.50
L1 (in) 0.53
Q (in) 20
Material Steel
Example Mating Tombstone Part # AMF-D180424-16-50
Shape Fixture Plates
