- MSR 110x12

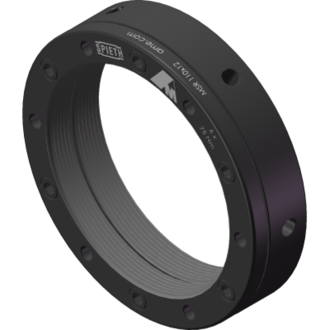

MSR 110x12
Category: MSR (Inch) – Standard Locknuts
Request Quote
List Price: $
|
Quantity |
Models shown are for informational/planning purposes only. Actual configuration will be determined at time of order. Please contact AME Sales for more information
Line Drawing - Click to Enlarge
Product Details
Equivalent Bearing Nut | AN-22 |
d₁ x threads/in | 110 x 12 |
d₂ (in) | 5.51 |
h (in) | 1.26 |
Axial Dynamic Load, lbf (kN) | 55,750 (248) |
Axial Static Load, lbf (kN) | 53,730 (239) |
d₃ (in) | 0.315 |
d₄ (in) | 4.84 |
d₅ (in) | 0.252 |
l (in) | 0.43 |
Clamp Screw (SHCS) | M6x22 |
No. of Screws | 6 |
Clamping Screw Torque, lb-in (Nm) | 664 (75) |
Moment of Inertia, lb-in² (kg-cm²) | 21.93 (64.16) |
Calculation Factor A (mm) | 6.604 |
Calculation Factor B (N) | 8,370 |
