ASC 4.000 x 4.500

Request A Quote

How Can We Help You?

  • Home
  • >
  • ASC 4.000 x 4.500

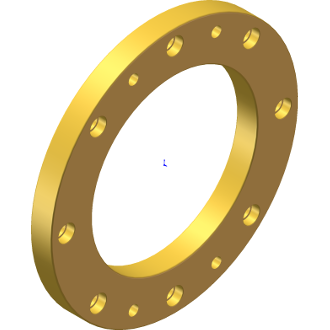

Cap for ASB Squeeze Bushing PN# ASA 4. x 4.5

Model: ASC 4.000 x 4.500

Request Quote Quantity

Adobe 3D PDF help

Line Drawing - Click to Enlarge

Product Details

Inside Ød [H7] (in) 4.000
Shaft Ød [f6] 0.6087
ØF ± .015 6.000
ØB ± 0.008 5.251
Screw Pattern Q 8 x 45°
Screw Size 5/16-18
Screw Qty. n 4
Max. Side Load (lbf) 400
