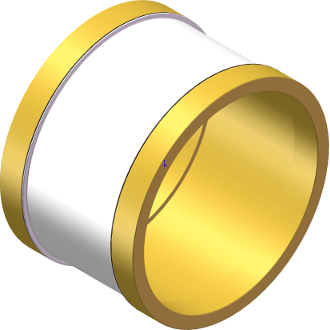

ASA Squeeze Bushing

Model: ASA 6.500 x 5.000

Request Quote
List Price: $
Quantity
Models shown are for informational/planning purposes only. Actual configuration will be determined at time of order. Please contact AME Sales for more information

Line Drawing - Click to Enlarge

Product Details

Inside Ød [H7] (in) 6.500
Outside ØD [g7] (in) 7.375
LENGTH l (.000/.0003) (in) 5.00
Shaft Ød [f6] -.0017 / -.0027
Housing ØD [H7] .0000 / +.0018
S 0.878
W (in) 0.512
ØF ± .015 8.630
ØB ± 0.008 7.938
Screw Pattern Q 8 x 45°
Screw Size 5/16-18
Screw Qty. n 4
ØP (in) 0.238
22.5°
Axial Holding Force (lbf) 7,540
Max. Side Load (lbf) 650
