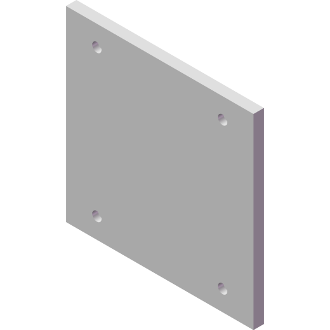

AMF-P1426-01-50 Fixture Plate

Fixture Plate

Model: AMF-P1426-01-50

Request Quote Quantity

Adobe 3D PDF help

Line Drawing - Click to Enlarge

Product Details

Nom. Size (in) 18 x 18
A (in) 17.90
B (in) 17.90
A1 (in) 1.95
C (in) 1.00
L (in) 0.38
M (in) 14
B1 (in) 2.95
L1 (in) 0.53
Q (in) 12
Material Steel
Example Mating Tombstone Part # AMF-C141428-20-50
Shape Fixture Plates
