AMF-P2526-01-50 Fixture Plates

Request A Quote

How Can We Help You?

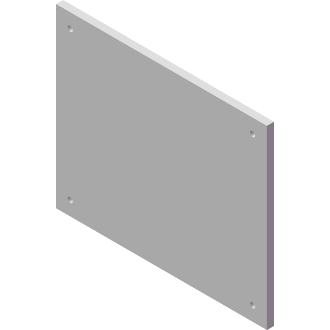

AMF-P2526-01-50 Fixture Plate

Fixture Plate

Model: AMF-P2526-01-50

Request Quote Quantity

Adobe 3D PDF help

Line Drawing - Click to Enlarge

Product Details

Nom. Size (in) 31 x 37
A (in) 31.00
B (in) 37.00
A1 (in) 2.50
C (in) 1.25
L (in) 0.50
M (in) 26
B1 (in) 2.50
L1 (in) 0.69
Q (in) 32
Material Steel
Example Mating Tombstone Part # AMF-D250629-25-50
Shape Fixture Plates

Product Catalog
