- AMR-P1224-01-50

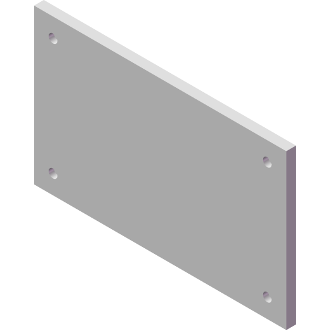

Fixture Plate
Model: AMR-P1224-01-50
|
Request Quote
List Price: $
|
Quantity |
Models shown are for informational/planning purposes only. Actual configuration will be determined at time of order. Please contact AME Sales for more information
Line Drawing - Click to Enlarge
Product Details
| Nom. Size (in) | 12 x 24 |
| A (in) | 11.900 |
| B (in) | 23.90 |
| C (in) | 1.000 |
| A1 (in) | 1.95 |
| L (in) | 0.38 |
| M (in) | 8 |
| B1 (in) | 1.95 |
| L1 (in) | 0.53 |
| Q (in) | 20 |
| Material | Steel |
| Weight (lbs) | 80 |
| Example Mating Tombstone Part # | AMF-C121228-20-50 |
| Shape | Fixture Plates |
