Fixture Plate

Model: AMR-P2020-01-50

Request Quote
List Price: $
Quantity
Models shown are for informational/planning purposes only. Actual configuration will be determined at time of order. Please contact AME Sales for more information

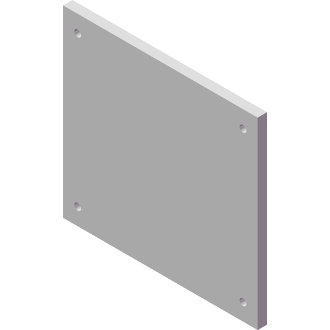

Line Drawing - Click to Enlarge

Product Details

Nom. Size (in) 20 x 20
A (in) 19.900
B (in) 19.90
C (in) 1.000
A1 (in) 1.95
L (in) 0.38
M (in) 16
B1 (in) 2.95
L1 (in) 0.53
Q (in) 14
Material Steel
Example Mating Tombstone Part # AMF-C202024-25-50
Shape Fixture Plates
