Fixture Plate
Model: AMR-P2022-01-50
Request Quote
List Price: $
|
Quantity |
Models shown are for informational/planning purposes only. Actual configuration will be determined at time of order. Please contact AME Sales for more information

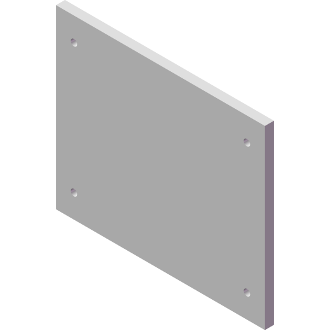

Line Drawing - Click to Enlarge
Product Details
Nom. Size (in) | 20 x 22 |
A (in) | 19.500 |
B (in) | 21.50 |
C (in) | 1.000 |
A1 (in) | 1.75 |
L (in) | 0.38 |
M (in) | 16 |
B1 (in) | 3.75 |
L1 (in) | 0.53 |
Q (in) | 14 |
Material | Steel |
Weight (lbs) | 122 |
Example Mating Tombstone Part # | AMF-D200624-20-50 |
Shape | Fixture Plates |
