Category: Octagon

Request Quote
List Price: $

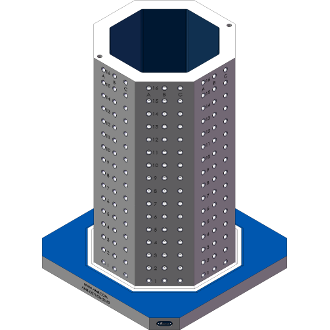

Models shown are for informational/planning purposes only. Actual configuration will be determined at time of order. Please contact AME Sales for more information

Line Drawing - Click to Enlarge

Product Details

B (in) 18.00
C (in) 7.456
D (in) 34.000
E (in) 1.90
A (in) 24.80 (630mm)
F (in) 2
G (in) 0
Material Cast Iron
Shape Octagon
Grid Style* 1/2"
