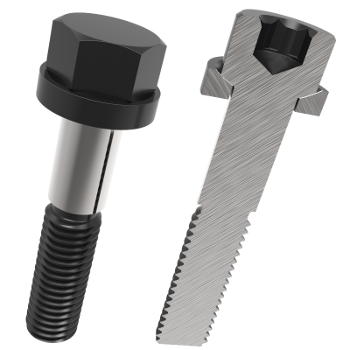

AMF-87147-01
Category: Precision Spherical Screws
| Request Quote | Quantity |
Models shown are for informational/planning purposes only. Actual configuration will be determined at time of order. Please contact AME Sales for more information
Adobe 3D PDF help
Line Drawing - Click to Enlarge
Product Details
| D | .3739/.3745 |
| L | 3.78 |
| L2 | 3.35 |
| L1 | 3.25 |
| L3 | 0.79 |
| Thread | 3/8-16 |
| Sph. Washer Part # | AMF-88116 |
| Socket | 41,044 |
| Head | 0.56 |
| O.D. (WASHER) | 0.75 |
