AMF-87542-04 Single Bar Heel Rest Tapped Hole

Request A Quote

How Can We Help You?

AMROK Clamping Bars and Bases

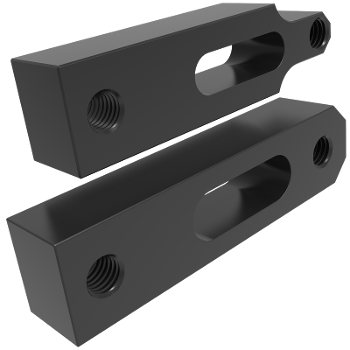

Model: AMF-87542-04

Request Quote Quantity
Models shown are for informational/planning purposes only. Actual configuration will be determined at time of order. Please contact AME Sales for more information

Adobe 3D PDF help

Line Drawing - Click to Enlarge

Product Details

C 1.31
A 0.53
L2 6.25
L1 3.06
L3 (Slot Size) 1.25
Thread 1/2-13
SYS (Grid Size) 1/2-13
