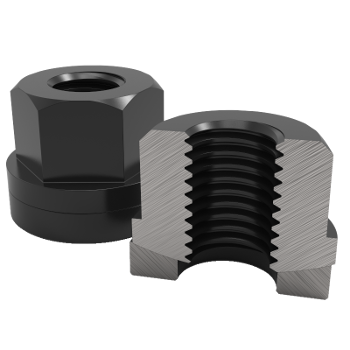

AMF-87100

Category: Spherical Nut Assembly

Request Quote Quantity
Models shown are for informational/planning purposes only. Actual configuration will be determined at time of order. Please contact AME Sales for more information

Adobe 3D PDF help

Line Drawing - Click to Enlarge

Product Details

L 0.91
L2 0.38
Thread 1/2-13
Hex 0.88
D (WASHER DIA.) 1.13
MATING WASHER BASE PART # AMF-87100-01
