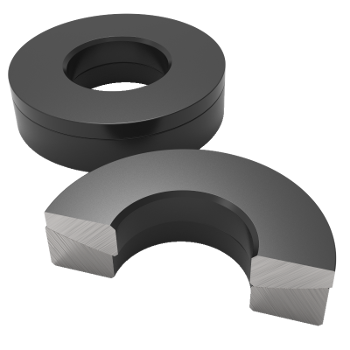

AMF-59634
Category: Spherical Washer Assembly
| Request Quote | Quantity |
Models shown are for informational/planning purposes only. Actual configuration will be determined at time of order. Please contact AME Sales for more information
Adobe 3D PDF help
Line Drawing - Click to Enlarge
Product Details
| C | 0.66 |
| A | 1.38 |
| B | 0.69 |
| D | .31 |
| E | 0.22 |
| MATING SPHERICAL WASHER BASE PART # | AMF-87100-04 |
