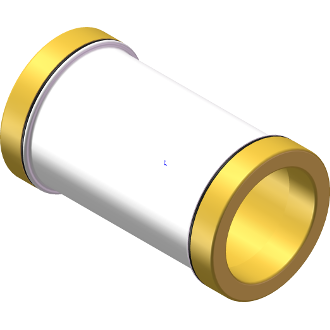

ASA Squeeze Bushing

Model: ASA 1.250 x 3.000

Request Quote
List Price: $
Quantity
Models shown are for informational/planning purposes only. Actual configuration will be determined at time of order. Please contact AME Sales for more information

Line Drawing - Click to Enlarge

Product Details

Inside Ød [H7] (in) 1.250
Outside ØD [g7] (in) 1.688
LENGTH l (.000/.0003) (in) 3.00
Shaft Ød [f6] -.0010 / -.0016
Housing ØD [H7] .0000 / +.0010
S 0.372
W (in) 0.315
ØF ± .015 2.500
ØB ± 0.008 2.011
Screw Pattern Q 6 x 60°
Screw Size 10-24
Screw Qty. n 2
ØP (in) 0.177
30°
Axial Holding Force (lbf) 1,030
Max. Side Load (lbf) 110
