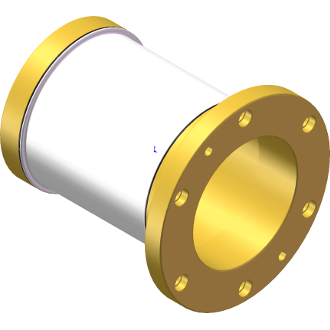

AST Squeeze Bushing

Model: AST 2.500 x 4.000

Request Quote
List Price: $
Quantity
Models shown are for informational/planning purposes only. Actual configuration will be determined at time of order. Please contact AME Sales for more information

Line Drawing - Click to Enlarge

Product Details

Inside Ød [H7] (in) 2.500
Outside ØD [g7] (in) 3.125
LENGTH l (.000/.0003) (in) 4.00
Shaft Ød [f6] -.0012 / -.0019
Housing ØD [H7] .0000 / +.0012
S 0.526
W (in) 0.394
ØF ± .015 4.125
ØB ± 0.008 3.562
Screw Pattern Q 6 x 60°
Screw Size 1/4-20
Screw Qty. n 2
ØP (in) 0.177
30°
Axial Holding Force (lbf) 2,610
Max. Side Load (lbf) 240
