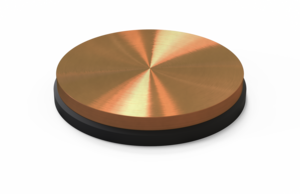

AMDISK Clamp Disk

Model: ACD 52

Request Quote
List Price: $
Quantity
Models shown are for informational/planning purposes only. Actual configuration will be determined at time of order. Please contact AME Sales for more information

Line Drawing - Click to Enlarge

Product Details

D, in (mm) 2.047 in (52 mm)
Bore ØD Tolerance [H8] (in) 2.047/2.049 in
Area, in² (mm²) 3.29 in² (2,2124 mm²)
Assembly Tool No.* ACDT-52
Clamp Force @ 1,000 psi 3,200 lbf (14.2 kN)
