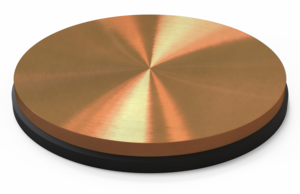

AMDISK Clamp Disk

Model: ACD 75

Request Quote
List Price: $
Quantity
Models shown are for informational/planning purposes only. Actual configuration will be determined at time of order. Please contact AME Sales for more information

Line Drawing - Click to Enlarge

Product Details

D, in (mm) 2.953 in (75 mm)
Bore ØD Tolerance [H8] (in) 2.953/2.955 in
Area, in² (mm²) 6.85 in² (4,418 mm²)
Assembly Tool No.* ACDT-75
Clamp Force @ 1,000 psi 6,500 lbf (28.9 kN)
