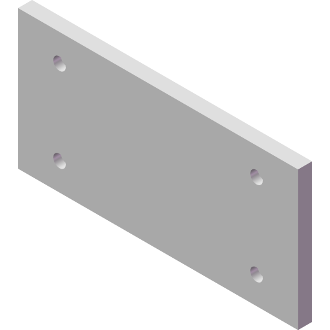

Fixture Plate
Model: AMR-P3137-01-50
|
Request Quote
List Price: $
|
Quantity |
Models shown are for informational/planning purposes only. Actual configuration will be determined at time of order. Please contact AME Sales for more information
Line Drawing - Click to Enlarge
Product Details
| Nom. Size (in) | 31 x 37 |
| A (in) | 31.000 |
| B (in) | 37.00 |
| C (in) | 1.250 |
| A1 (in) | 2.50 |
| L (in) | 0.50 |
| M (in) | 26 |
| B1 (in) | 2.50 |
| L1 (in) | 0.69 |
| Q (in) | 32 |
| Material | Steel |
| Weight (lbs) | 403 |
| Example Mating Tombstone Part # | AMF-W320840-32-50 |
| Shape | Fixture Plates |
