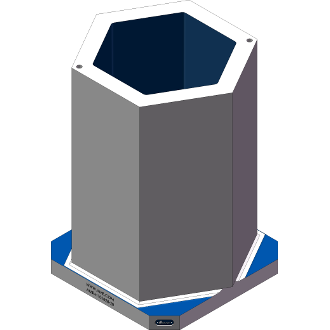

AMR-H101828-20 Hexagon Tombstones

Request A Quote

How Can We Help You?


Category: Hexagon

Request Quote
List Price: $
Models shown are for informational/planning purposes only. Actual configuration will be determined at time of order. Please contact AME Sales for more information

Adobe 3D PDF help

Line Drawing - Click to Enlarge

Product Details

B (in) 18.00
C (in) 10.392
D (in) 28.000
E (in) 1.90
A (in) 19.69 (500mm)
F (in) 2
G (in) -
Material Cast Iron
Shape Hexagon
Grid Style* None
