  • ASC 3.500 x 4.500

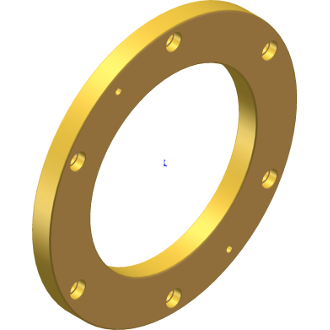

Cap for ASB Squeeze Bushing PN# ASA 3.5 x 4.5

Model: ASC 3.500 x 4.500

Request Quote
List Price: $
Quantity
Models shown are for informational/planning purposes only. Actual configuration will be determined at time of order. Please contact AME Sales for more information

Line Drawing - Click to Enlarge

Product Details

Inside Ød [H7] (in) 3.500
Shaft Ød [f6] 0.608695652
ØF ± .015 5.250
ØB ± 0.008 4.687
Screw Pattern Q 6 x 60°
Screw Size 1/4-20
Screw Qty. n 2
Max. Side Load (lbf) 350
