  • ASC 6.500 x 5.000

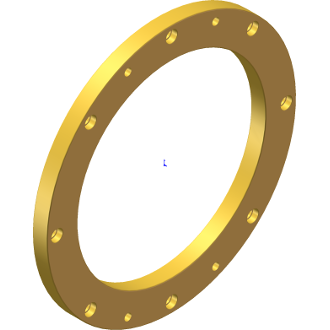

Cap for ASB Squeeze Bushing PN# ASA 6.5 x 5

Model: ASC 6.500 x 5.000

Request Quote
List Price: $
Quantity
Models shown are for informational/planning purposes only. Actual configuration will be determined at time of order. Please contact AME Sales for more information

Line Drawing - Click to Enlarge

Product Details

Inside Ød [H7] (in) 6.500
Shaft Ød [f6] 0.62962963
ØF ± .015 8.630
ØB ± 0.008 7.938
Screw Pattern Q 8 x 45°
Screw Size 5/16-18
Screw Qty. n 4
Max. Side Load (lbf) 650
