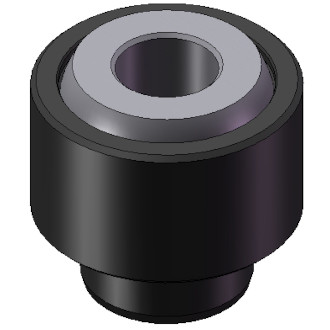

AMROK Press Fit Shank Ball Elements
Model: AMF-87724
|
Request Quote
List Price: $
|
Quantity |
Models shown are for informational/planning purposes only. Actual configuration will be determined at time of order. Please contact AME Sales for more information
Adobe 3D PDF help
Line Drawing - Click to Enlarge
Product Details
| H | 1.25 ±0.0005 |
| L | 1.85 |
| Series | 700 |
| SH (Serration Hgt) | - |
| Smooth/Serrated | smooth |
| Loc. Pin or Hole | hole |
| Pin or Hole Dia. (MMC) | 0.5001 |
| Shank Diameter | 1.2513 - 1.2507 |
| Deg. of Swivel | 10 |
