RLN-100325CMS1 RLN Pneumatic Rod Lock for NFPA Cylinders / Actuators

Request A Quote

How Can We Help You?

RLN Pneumatic -NFPA

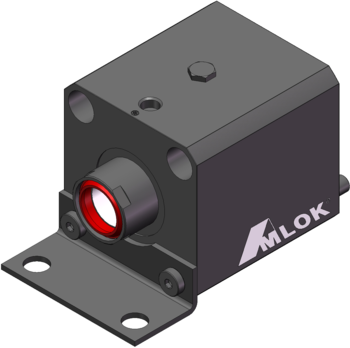

Model: RLN-100325CMS1

Request Quote
List Price: $
Models shown are for informational/planning purposes only. Actual configuration will be determined at time of order. Please contact AME Sales for more information

Adobe 3D PDF help

Line Drawing - Click to Enlarge

Product Details

Rod Dia. (in) 1.000
Bore Dia. (in) 3.25
Axial Holding Force (lbf) 950
B (in) 1.500
E (in) 3.725
L (in) 4.00
P 1/4 NPT
S (in) n/a
AB (in) n/a
AH (in) 1.937
AL (in) 1.25
AO (in) 0.5
AT (in) n/a
BB (in) 0.6
C (in) 0.563
D (in) 0.719
DD Thread n/a
F (in) n/a
FL (in) 1.281
FB (in) 0.406
FF (in) n/a
R (in) 2.76
SA (in) n/a
TF (in) n/a
UF (in) n/a
V (in) 0.89
X (in) 0.56
Y (in) 0
Weight (lbs) 6.42
Mounting Type MS1
Shipping Type Ships as Kit
Connecting Type C
Product Datasheet AMLOK_RLN_Series_Pneumatic_Rod_Lock_C...

Product Catalog
